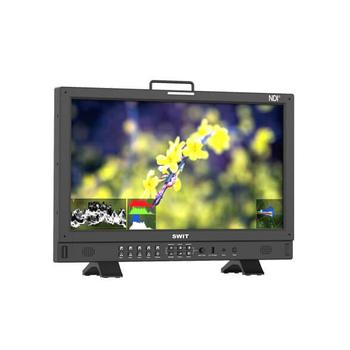

BM-215-NDI 21.5-inch Professional NDI® Monitor Features: 21.5-inch 1920×1080 QLED Panel 100% DCI-P3 wide color gamut coverage VICO 1.97 A-class Eye Protecting Panel High bandwidth 4K NDI® monitoring 3GSDI 2-in 1-loop, HDMI2.0 input NDI® decode to 3GSDI output NDI®/SDI/HDMI PBP or PIP view Auto detect and quick select NDI® sources Support NDI® Discover Server Support NDI® Low bandwidth mode Rec 709 / DCI-P3 / Rec 2020 color gamut selection 3DLUT Auto Self-calibration without PC Built-in Delog LUTs and User LUTs upload by USB Waveform / Vector / Histogram Focus assist / False color / Zebra 16-ch audio meters / Lissajous pattern IP webserver remote control AC, DC and battery plate power Specifications: LCD Performance Size 21.5 inches Display area 495.6×292.2mm Resolution 1920×1080 Aspect ratio 16:9 Brightness 400nits Contrast 3000:1 Color Gamut 100% DCI-P3 Color depth 10bit (8+2FRC) Eye Protect VICO 1.97 Viewing angle 178°(H) /178°(V) Input RJ45 ×1 High bandwidth 4K NDI® BNC ×2 3G/HD/SD-SDI input HDMI ×1 HDMI 2.0 input RS485 ×1 TSL 3.1/4.0 UMD input RS485 ×1 GPI (Tally) input Output BNC ×1 3G/HD/SD-SDI loop output BNC×1 NDI® decoded to SDI output RS485 ×1 TSL 3.1/4.0 UMD output Analog audio 3.5mm headphone and speaker Video Format NDI® 4096×2160p (30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (30 / 29.97 / 25 / 24 / 23.98) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) NDI® decoded to SDI out 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) SDI IN1/2 and LOOP 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576i (50) HDMI IN 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) General Input voltage DC 12V-17V, AC 100-240V, 50/60Hz Power consumption 45W Working temperature 0°C～+50°C Working humidity 10%～90% Storage temperature -15°C～+60°C Storage humidity 10%～90% Dimensions 530.6×364.3×74.2mm Net weight (main body) Net 5.90kg; With package10.05kg
