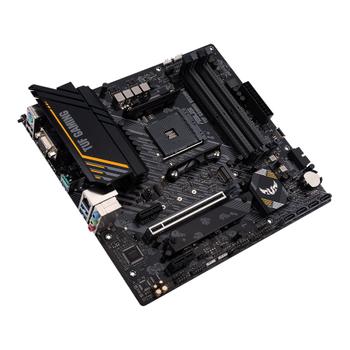

ASUS TUF GAMING B550M-E mATX AM4

TUF GAMING B550M-E

• AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Enhanced Power Solution: Alloy Chokes, military-grade TUF components, and DIGI+ VRM for maximum durability
• Comprehensive Cooling: Large VRM heatsink, M.2 heatsink, PCH fanless heatsink, hybrid fan headers, and Fan Xpert 2+ utility
• Ultrafast Connectivity: Dual M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, and front USB 3.2 Gen 1 Type-C® support
• Made for Online Gaming: 1 Gb Ethernet, TUF LANGuard and Turbo LAN technology
• Aura Sync RGB Lighting: Onboard addressable Gen 2 headers and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

• B550

• 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory
• Dual Channel Memory Architecture

• 1 x DisplayPort 1.2
• 1 x D-Sub
• 1 x HDMI™ 2.1 (4K@60Hz)

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode)
• AMD B550 Chipset 2 x PCIe 3.0 x1 slots

• Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• AMD Ryzen™ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• AMD B550 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • Support RAID 0, 1, 10

• 1 x Realtek 1Gb Ethernet
• TUF LANGuard

• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB:Total 7 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium Japanese audio capacitors
  • Dedicated audio PCB layers

• 2 x USB 3.2 Gen 2 ports (2 x TypeA)
• 2 x USB 3.2 Gen 1 ports (2 x TypeA)
• 2 x USB 2.0 ports (2 x TypeA)
• 1 x DisplayPort
• 1 x DSub port
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port

• Fan and Cooling related
  • 1 x 4pin CPU Fan header
  • 1 x 4pin CPU OPT Fan header
  • 2 x 4pin Chassis Fan headers
• Power related
  • 1 x 24pin Main Power connector
  • 1 x 8pin +12V Power connector
• Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 connector (supports USB TypeC®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 2 x AURA Addressable Gen 2 headers
  • 2 x AURA RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (141pin)
  • 1 x 101 pin System Panel header

• ASUS TUF PROTECTION
  • DIGI+ VRM
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • TUF LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • StainlessSteel Back I/O
• ASUS QDesign
  • QDIMM
  • QSlot
• ASUS Thermal Solution
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
• AURA Sync
  • AURA RGB headers
  • Addressable Gen 2 RGB headers

• ASUS Exclusive Software
• Armoury Crate
  • AURA Creator
  • AURA Sync
• AI Suite 3 Performance and Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert 2+
• EZ update
• TUF GAMING CPUZ
• AI Charger
• ASUS Turbo LAN
• DAEMON Tools
• DTS Custom for GAMING Headsets
• Norton Antivirus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x I/O Shield
  • 1 x M.2 Rubber package
  • 1 x M.2 SSD screw package
  • 1 x TUF Gaming sticker
• Installation Media 1 x Support DVD
• Documentation 1 x TUF Certification card

• microATX
• 24.4cm x 24.4cm
