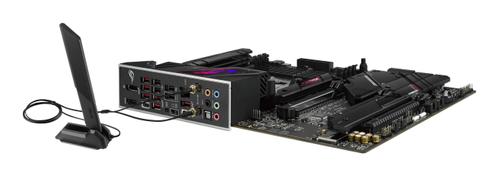

ASUS ROG STRIX B650E-E GAMING WIFI (ATX, B650E, AM5)

ROG STRIX B650E-E GAMING WIFI

• Power Stages
  • 16 + 2 + 1 power solution rated for up to 70A per stage
• Overclocking Technologies
  • Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
• PCIe 5.0
  • Both x16 slots and two on-board M.2 slots are all PCIe Gen 5-ready
• DDR5
  • 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
• WiFi 6E
  • Faster-than-Gigabit WiFi unlocks access to the low-interference 6 GHz band
• DIY Friendly
  • Easy installation for GPUs and SSDs, plus simple BIOS resets and updates

• AMD Socket AM5 for AMD Ryzen™ Desktop Processors

• AMD B650

• 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO™)
• OptiMem II
• On-Die ECC function

• 1 x DisplayPort
• 1 x HDMI® port

• AMD Ryzen™ Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes)
• AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• AMD B650 Chipset
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.2

• Rear USB (Total 12 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
  • 4 x USB 2.0 ports
• Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback
• Audio Features
  • Audio Shielding
  • Savitech SV3H712 AMP
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Audio cover

• 1 x USB 3.2 Gen 2x2 port (1 x Type-C®)
• 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 xUSB Type-C®)
• 4 x USB 2.0 ports
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connector
• Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with
• Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ (USB4®) header

• Extreme Engine Digi+
  • 5K Black Metallic Capacitors
• ASUS Q-Design
  • M.2 Q-Latch
  • PCIe Slot Q-Release
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsinks
  • M.2 heatsink backplate
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Clear CMOS button
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• Aura Sync
  • Aura RGB header
  • Addressable Gen 2 headers

• ROG Exclusive Software
  • GameFirst VI
  • ROG CPU-Z
  • Sonic Studio III + Sonic Studio Virtual
  • Mixer + Sonic Suite Companion
  • Sonic Radar III
  • DTS® Sound Unbound
  • Anti-virus software
• ASUS Exclusive Software
  • Armoury Crate
  • AIDA64 Extreme (60 days free trial)
  • Aura Creator
  • Aura Sync
  • Fan Xpert 4
  • Power Saving
  • Two-Way AI Noise Cancellation
  • AI Suite 3
  • TPU
  • DIGI+ VRM
  • Turbo app
  • PC Cleaner
  • MyAsus
  • WinRAR
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
  • Dynamic OC Switcher
  • FlexKey

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables
  • 2 x SATA 6Gb/s cables
• Additional Cooling Kit
  • 1 x Thermal pad for M.2
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x M.2 Q-Latch package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
  • 2 x Rubber Packages for M.2
• Documentation
  • 1 x User guide

• Windows® 10 64-bit, Windows® 11 64-bit

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
