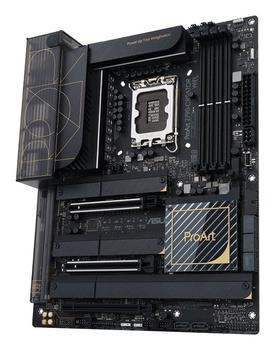

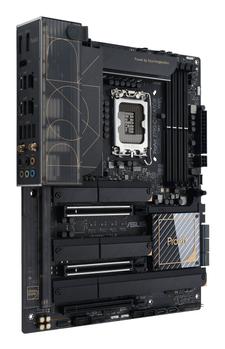

ASUS ProArt Z790-CREATOR WIFI - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 - 10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard gra

ProArt Z790-CREATOR WIFI

• PCIe 5.0® slots for graphics cards and storage
• Unleash DDR5 with AEMP II
• Two Thunderbolt™ 4 ports (USB4® Compliant)
• 10Gb & 2.5 Gb Ethernet, WiFi 6E
• 16(70A)+1(70A)+2 power stages with enlarged VRM heatsinks
• AI Overclocking
• AI Cooling II
• ProArt Creator Hub

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® Z790 Chipset

• 4 x DIMM, Max. 192GB, DDR5
• 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

• 1 x HDMI® port
• 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs

• Intel® Core™ Processors (14th & 13th & 12th Gen) 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
• Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

• Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
• Intel® Core™ Processors (14th & 13th & 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• Intel® Z790 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 8 x SATA 6Gb/s ports

• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth® v5.3

• Rear USB (Total 8 ports)
  • 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
  • 6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C® with 60W PD 3.0 / QC 4+)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
  • Impedance sense for front and rear headphone outputs
  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-Bit/192 kHz playback
• Audio Features
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Audio cover
  • Unique de-pop circuit

• 2 x Thunderbolt™ 4 USB Type-C® port(s)
• 6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
• 2 x DisplayPort (Input only)
• 1 x HDMI® port
• 1 x ASUS Wi-Fi Module
• 1 x Marvell® AQtion 10Gb Ethernet port
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header(s)
  • 1 x 4-pin CPU OPT Fan header(s)
  • 1 x 4-pin AIO Pump header(s)
  • 5 x 4-pin Chassis Fan header(s)
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • 1 x 6-pin +12V Power connector
• Storage related
  • 4 x M.2 slots (Key M)
  • 8 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 header(s)
  • 1 x AURA RGB header(s)
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header

• ASUS 5X PROTECTION III
  • DIGI+ VRM (Digital power design with DrMOS)
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • LANGuard
  • Overvoltage Protection
  • SafeSlot
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • M.2 Q-Latch
  • Q-Connector
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Box Headers
  • ProCool II
  • Pre-mounted I/O shield
• AURA Sync
  • AURA RGB header(s)
  • Addressable Gen 2 header(s)

• ASUS Exclusive Software
  • Armoury Crate
  • AURA Creator
  • AURA Sync
  • Fan Xpert 4 with AI Cooling II
  • Two-Way AI Noise Cancelation
  • Power Saving
  • AI Suite 3
  • Easy Optimization with AI Overclocking
  • TPU
  • DIGI+ Power Control
  • Turbo app
  • PC Cleaner
  • ASUS CPU-Z
  • IT Management software supported
  • ASUS Control Center Express(ACCE)
  • ProArt Creator Hub
  • CreationFirst
  • MyAsus
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR
• UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
  • FlexKey
  • MemTest86

• 256 Mb

• WOL by PME, PXE

• Windows® 11 64-bit, Windows® 10 64-bit

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
